Socket Flexible Assembly Line
Dual-channel / The Beat 2pcs / Electrical industry
Low noiseOperating noise below 40 decibels
Highly versatileFor 0.5–150mm thin, irregular, and scratch-sensitive parts.
No wearNo wear on the material

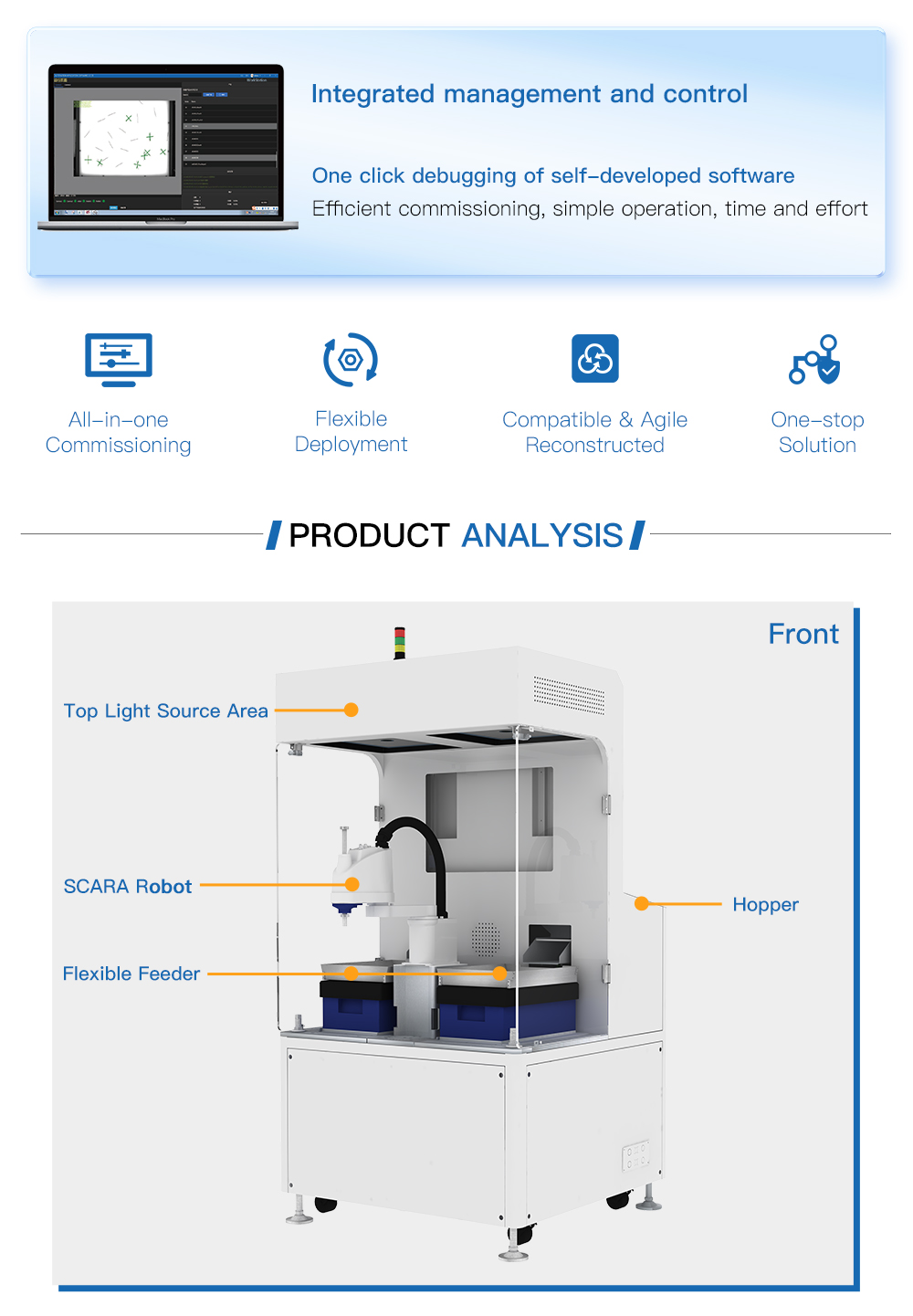

Accurate positioningSelf-developed vision integration software for accurate positioning
Easy to debugVisual debugging, vibration series integration, easy to use
CustomizableSupport special material plate customization
| The Beat | Pressure | Precision |
1.5~3 s/pcs Subject to material conditions | 0.5~0.7 mpa | Up to 0.05 mm |
| Category | AAS software | Robot | CCD with Industrial Controller | Mouthpiece | Clamping jaw |
| Brand | Ver3.0 | Epson / Huichuan / Exton / KUKA | HIKVISION 500W/1200W/2000W | 2~15mm | Non-standard customization |
| Standard/Optional | Standard | Optional | Optional | Optional | Optional |
*The flexible feeder and manipulator models can be configured according to the needs, please consult the business personnel for details
Dual-channel / The Beat 2pcs / Electrical industry
Dual-channel / The Beat2pcs / Medical industry
Dual-channel / The Beat2pcs / Automobile industry
