Socket Flexible Assembly Line
Dual-channel / The Beat 2pcs / Electrical industry
Low noiseOperating noise below 70 decibels

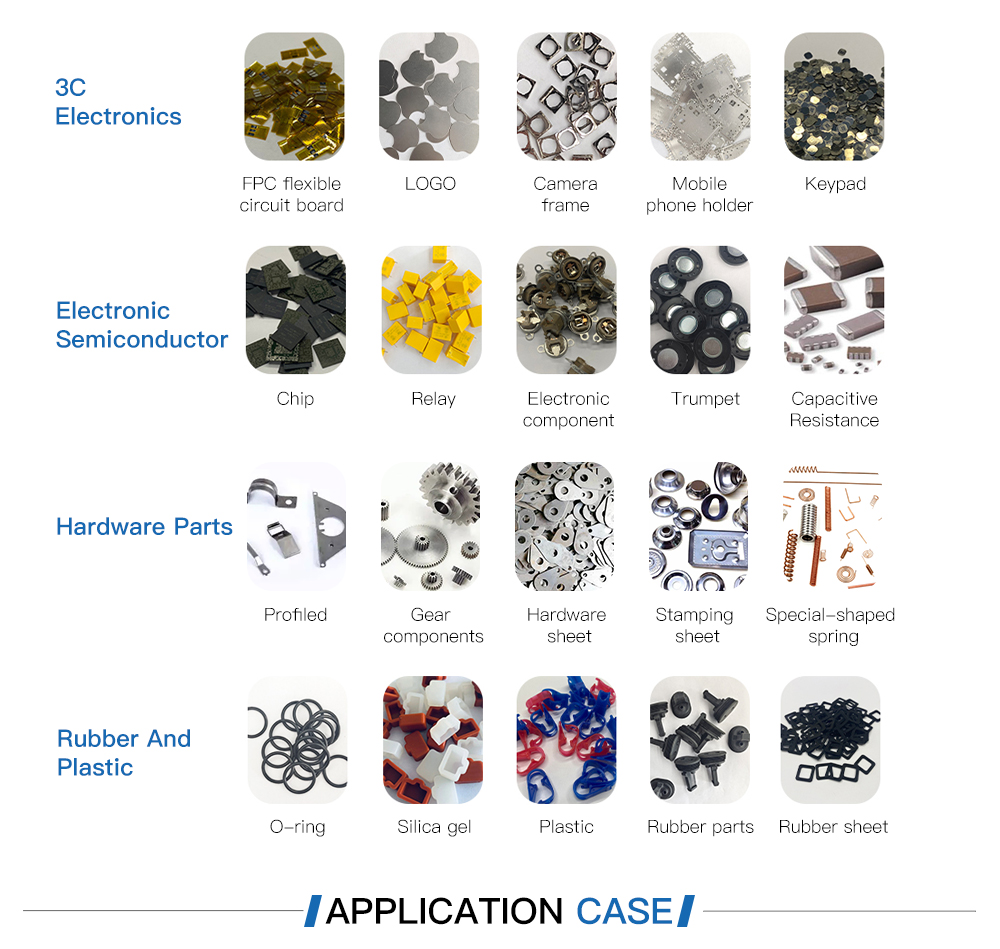

CompatibleFor 1–150mm thin, irregular, and scratch-sensitive parts.
No wearNo wear on the material
High-QualityThe core components are self-developed and the quality is guaranteed
Easy to debugVisual debugging, vibration series integration, easy to use
CustomizableSupport special material plate customization

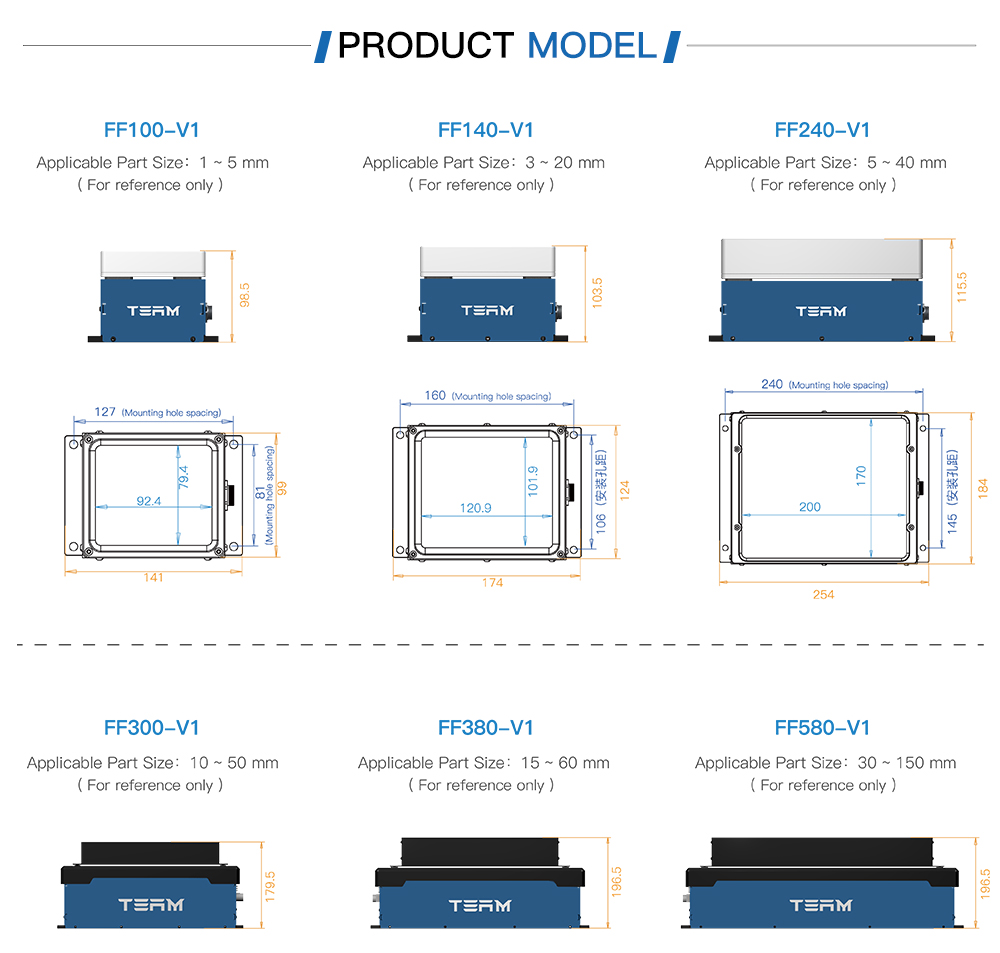

| Model | Overall Dimensions | Plate Size | Weight | Maximum Capacity | Applicable Part Size(For reference only) | Operating Noise (No-load) | Controller | Operating Frequency | Voltage / Current | Communication |

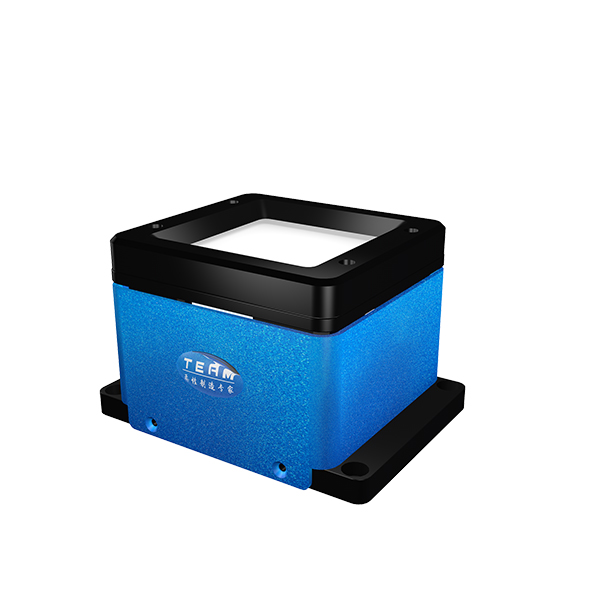

| FF100-V1 | 141*99*98.5mm | 92.4*79.4mm | 2kg | 50g | 1~5mm | ≤70DB | External Controller | 20-100Hz | 24V /10A | TCP/IP、Modbus TCP |
| FF140-V1 | 174*124*103.5mm | 120.9*101.9mm | 2.6Kg | 80g | 3~20mm | ≤70DB | 20-100Hz | |||
| FF240-V1 | 254*184*115.5mm | 200*170mm | 4.8Kg | 400g | 5~40mm | ≤73DB | 20-80Hz | |||

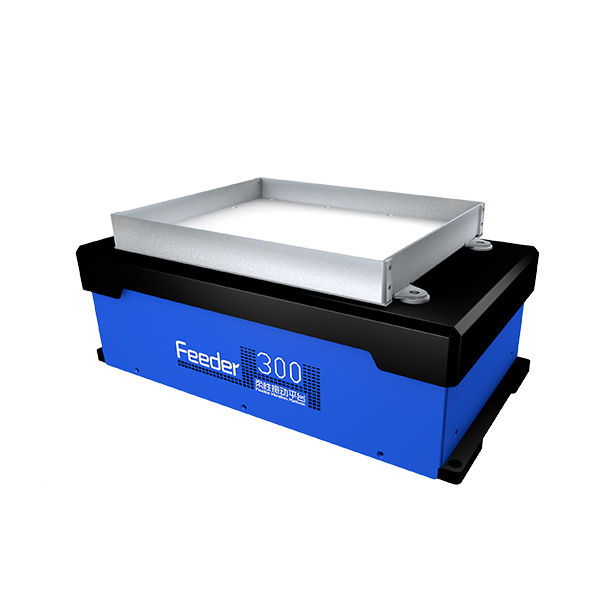

| FF300-V1 | 386*236*179.5mm | 278*221mm | 13Kg | 1.5Kg | 10~50mm | ≤76DB | Built In Controller | 15-40Hz | ||

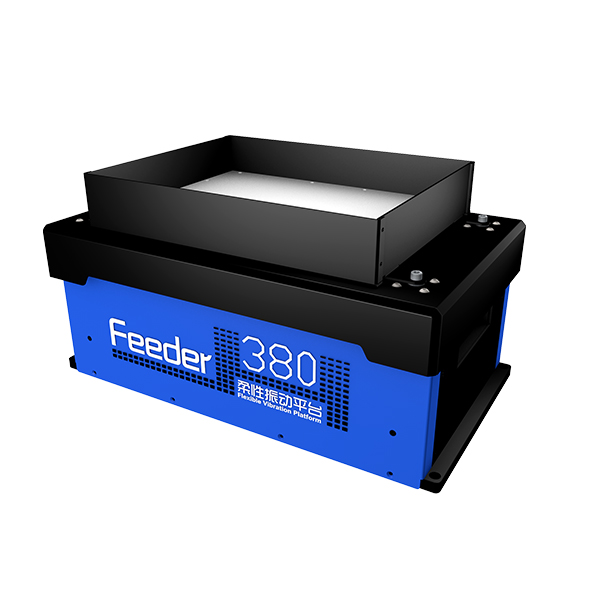

| FF380-V1 | 473*279*196.5mm | 331*248mm | 15.5Kg | 1.5Kg | 15~60mm | ≤70DB | 15-40Hz | |||
| FF580-V1 | 613*393*196.5mm | 471*364mm | 24.8Kg | 2Kg | 30~150mm | ≤78DB | 15-40Hz |
| Damping Components | Integrated LED Backlight | FC Light Source Bracket | Purge Unit | Plate Style |
| Yes | Red / Green / Blue | Yes | Yes | Hole / Slot / Nesting |
| None | White | None | None | Plane |
Dual-channel / The Beat 2pcs / Electrical industry
Dual-channel / The Beat2pcs / Medical industry
Dual-channel / The Beat2pcs / Automobile industry
